The High Cost of Neglected Commercial Roof Drainage: Why Your Building is at Risk

In the world of commercial roofing, facility managers focus on membranes, warranties, and storm damage. But the most critical system, the one responsible for protecting the entire building from the persistent threat of water, is often the most neglected: the drainage system. It is not a glamorous topic, but a failure in this single area is the root cause of ponding water, accelerated membrane decay, structural overloading, and a significant portion of the costly interior water damage claims that plague building owners. A properly functioning drainage system is not just a feature. It is the core of a durable, long-lasting roof assembly. Ignoring it is a financial gamble with very poor odds.

This article provides a detailed look at commercial roof drainage. We will cover the specific design codes your building must meet, the common but critical failures we see every day, and the true financial consequences of inaction. This is not about hypotheticals. It is about the real-world physics and finances of water management on commercial properties in Texas and Oklahoma.

The Code Demands More Than You Think: IBC and Texas Rainfall

Many building owners assume their roof is "up to code," but the code itself is a moving target. The International Building Code (IBC) provides the baseline for commercial construction, and its requirements for roof drainage are specific and stringent. The IBC dictates that a roof's drainage system must be designed to handle the localized "design storm event," which is a measure of maximum rainfall intensity.

Understanding Rainfall Intensity

In most Texas markets, modern building codes require drainage systems capable of managing rainfall intensities between 4 and 6 inches per hour. This is a massive volume of water. An older building, constructed under a previous code edition, might have a drainage system designed for only 2 or 3 inches per hour. As weather patterns have shifted and intense storm events become more frequent in our region, these older systems are now functionally inadequate. They simply cannot keep up, leading to overwhelmed drains and dangerous levels of ponding water.

The Critical 1/4-Inch Slope Rule

The IBC also mandates that a commercial roof must have a minimum slope of at least 1/4 inch per foot. This means for every foot of horizontal distance, the roof deck must drop by a quarter of an inch toward a drain or scupper. This "positive drainage" is essential to ensure water moves efficiently off the roof surface instead of sitting stagnant. On a large roof, even a seemingly flat surface must have this subtle but critical engineering built in. During inspections, we often find large areas with insufficient slope, sometimes due to poor initial design or subsequent settling of the building structure. These areas are chronic sources of ponding water, which significantly shortens the lifespan of TPO and PVC membranes.

The Two-Drain System: Your Building’s Built-In Failsafe (If It Exists)

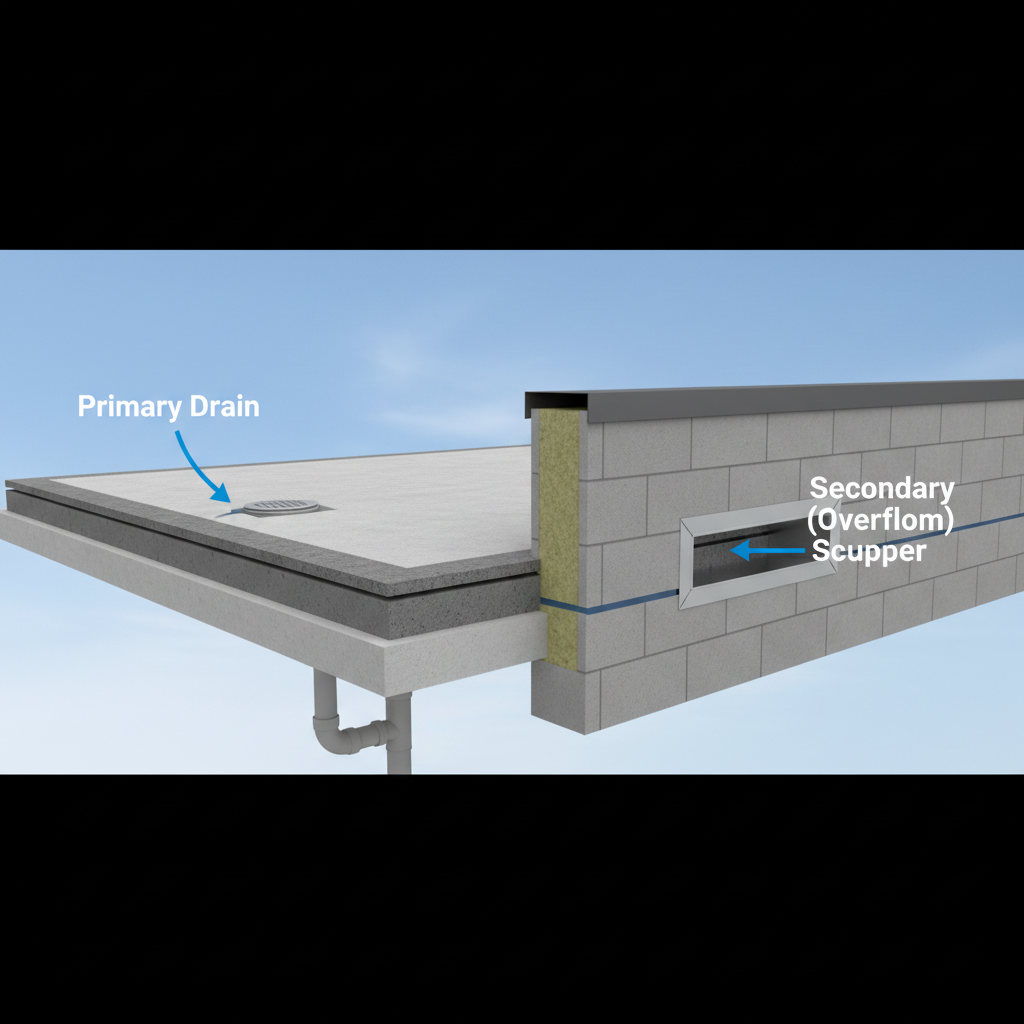

One of the most critical and frequently misunderstood aspects of IBC code is the requirement for two independent drainage systems on every commercial roof. This is not optional. It is a fundamental safety requirement to prevent structural collapse.

• Primary Drains: These are the main drains located at the low points of the roof surface. They are designed to collect and remove water during typical rainfall.
• Secondary (Overflow) Drains: This separate system is your building's emergency relief valve. The inlets for secondary drains must be located two inches above the primary drains. Their sole purpose is to activate if the primary drains become clogged or overwhelmed.

This two-part system is a mandated failsafe. The primary drains handle 100% of the water during a normal event. The secondary drainage system is your insurance policy, designed to activate only when the primary system is overwhelmed or blocked. Water will pool to a depth of two inches, at which point it will begin exiting through the overflow drains or scuppers, alerting facility staff to a problem while preventing catastrophic water accumulation. Unfortunately, a shocking number of buildings, especially older ones, either lack a secondary system entirely or have had it rendered useless by improper modifications.

Anatomy of a Commercial Roof Drainage System: Pros and Cons

Commercial buildings utilize a few common drainage methods, each with its own operational benefits and maintenance requirements. Understanding the system on your building is the first step toward managing it effectively.

Interior Drains

Common on large, low-slope roofs, interior drains are plumbing fixtures that collect water and route it down through the building's interior via pipes.

• Pros: Highly efficient at removing large volumes of water from the center of a massive roof. They protect walkways and building perimeters from concentrated water runoff.
• Cons: They create a major single point of failure. If an interior drain clogs, there is nowhere for the water to go but up, leading to deep ponding. They require diligent, regular maintenance to keep clear of debris. A failure or leak in the internal piping can cause massive damage inside the building that is difficult to trace.

Scuppers and Collector Boxes

Scuppers are essentially slots or openings cut through parapet walls that allow water to drain off the side of the building. They often empty into a "collector box," which is a funnel-like fixture that directs the water into a downspout.

• Pros: Simple, low-maintenance, and highly reliable. They are less prone to clogging than interior drains. Overflow scuppers are a very effective and common type of secondary drainage system.
• Cons: They concentrate water discharge at specific points along the building's perimeter, which can lead to erosion or staining of walls if not managed properly with downspouts. They are generally less efficient than interior drains for very large roof surfaces.

Gutters and Downspouts

While common on residential and smaller commercial buildings, gutters are often a point of weakness on larger commercial properties.

• Pros: Effective for managing water runoff from smaller, sloped roof sections.
• Cons: Commercial gutters are frequently undersized for the roof area they serve. They are extremely susceptible to clogging from leaves and debris and require the most frequent cleaning. Heavy ice or water loads can cause them to pull away from the building, creating additional damage. On most large commercial facilities, gutters are not a primary drainage solution.

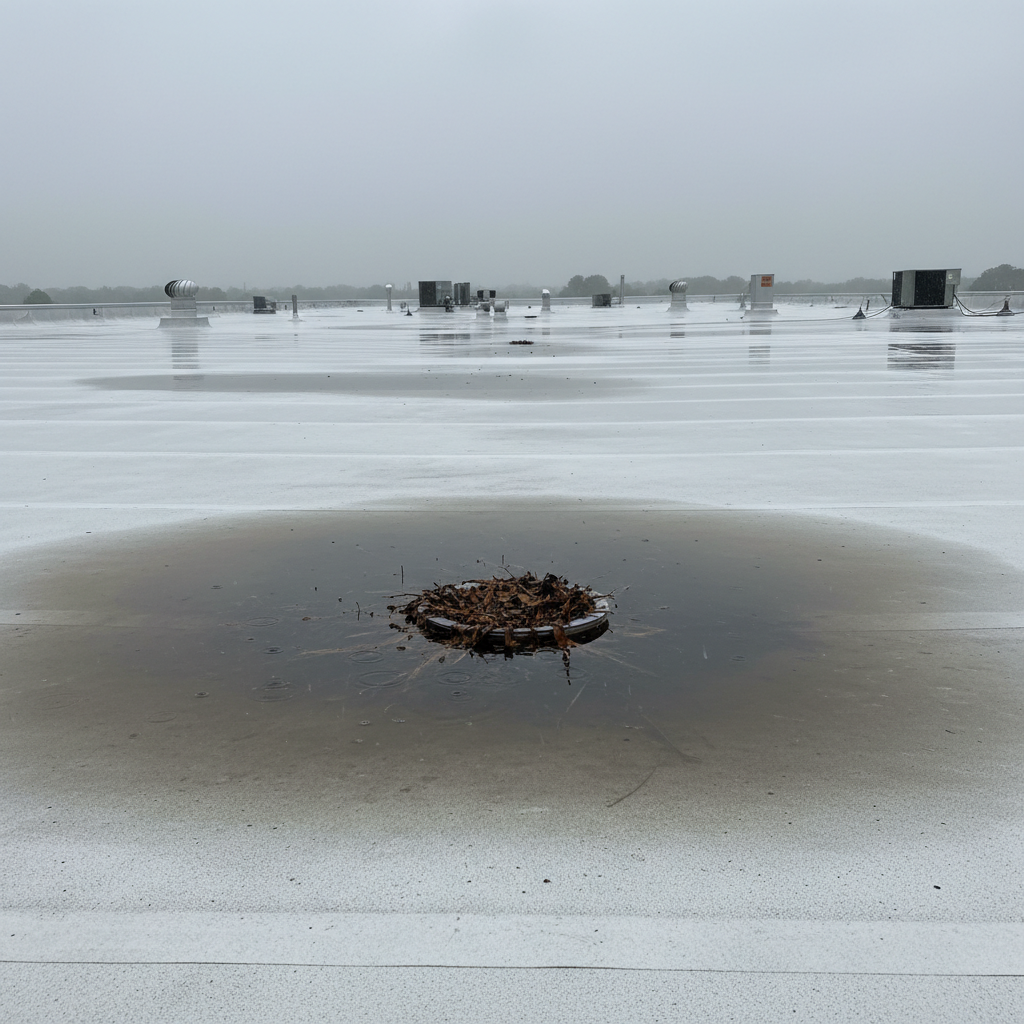

The Terrifying Math of Ponding Water

Facility managers often underestimate the danger of ponding water because it looks harmless. This is a critical miscalculation. Water is incredibly heavy, and its weight adds up at an astonishing rate. The key number to remember is this: water weighs 5.2 pounds per square foot, per inch of depth.

Now, let’s apply that to a typical commercial building. Consider a modest 30,000 square foot roof section. If a storm clogs the primary drains and the secondary system is non-existent or has failed, water can easily accumulate.

• 1 inch of ponding water: 30,000 sq ft x 5.2 lbs = 156,000 pounds of extra weight.
• 2 inches of ponding water: 30,000 sq ft x 10.4 lbs = 312,000 pounds of extra weight.
• 4 inches of ponding water: 30,000 sq ft x 20.8 lbs = 624,000 pounds of extra weight.

That is over 300 tons of live load that your roof structure was not designed to support. This is the equivalent of parking 75 mid-size pickup trucks on your roof. This scenario is not theoretical. Structural failures and roof collapses caused by this exact mechanism have occurred in Texas and Oklahoma. Buildings with bar joist roof structures are particularly vulnerable to this kind of overloading. Understanding this simple calculation transforms ponding water from a minor nuisance into the serious structural threat it truly is.

The Financial Tipping Point: Maintenance vs. Catastrophe

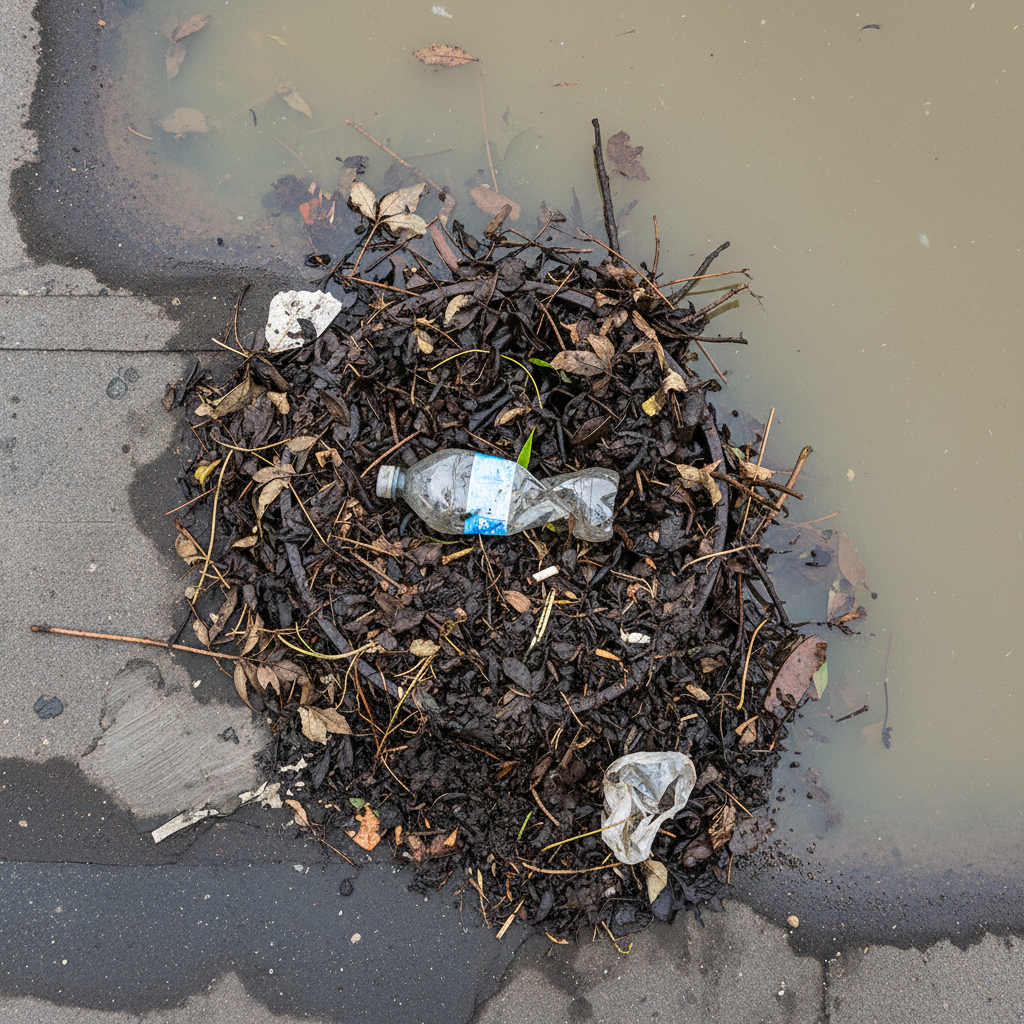

The decision to fund preventative roof maintenance often gets deferred in favor of more immediate operational needs. However, when viewed through the lens of risk management, proactive drainage maintenance is one of the highest-return investments a building owner can make. These failures almost always begin with simple neglect. Leaves, dirt, windblown trash, and construction debris accumulate over time, creating a dense plug that a heavy rainstorm cannot clear.

The Cost of Prevention

Professional drain inspection and cleaning is a predictable operational expense.

• A typical commercial roof may have between 8 and 15 interior drains.
• The cost for professional cleaning typically ranges from $300 to $600 per drain, per visit.
• An annual maintenance budget for drainage might fall between $2,400 and $9,000.

The Cost of Failure

A single interior flood event from a blocked drain can easily cause $50,000 to $500,000 in damages, depending on the building’s contents and the extent of the water intrusion. This includes replacing drywall, ceiling grids, flooring, inventory, and sensitive electronic equipment, not to mention business interruption costs. When a low four-figure annual maintenance cost is compared to a potential mid-six-figure disaster, the choice becomes obvious. Even if a flood is avoided, chronic ponding water will saturate insulation, degrade the roof membrane, and cut the expected service life of a roof system in half, forcing a premature replacement costing hundreds of thousands of dollars. In either scenario, neglecting maintenance leads directly to a massive, unbudgeted capital expense or an insurance claim that could have been avoided. Should you find yourself facing this situation, immediate roof repair is critical to mitigate further losses.

A Proactive Drainage Inspection Protocol for Facility Managers

You can protect your building by implementing a simple, multi-tiered inspection protocol. This does not have to be complicated, but it must be consistent.

1. Post-Storm Walkover: After every significant rain event, a member of your team should walk the roof. The goal is simple: verify that water is gone. If there are still large areas of ponding water 48 hours after the rain has stopped, a drain is clogged or you have a slope deficiency. This is the earliest warning sign of a problem.
2. Quarterly Professional Inspection: For buildings located in areas with heavy foliage or nearby construction, a quarterly check is wise. A roofing professional can quickly and safely clear debris from drain covers and scuppers before it becomes a major impaction.
3. Annual Documented Inspection: At least once a year, you should invest in one of the routine commercial roof inspections from a qualified contractor like TriVAN Roofing. Our technicians will not only clear all drains, scuppers, and gutters but will also inspect the drain seals, pipe connections, and the surrounding membrane. We provide photographic documentation, which is essential for warranty compliance and long-term asset management.

How Re-Roofing Can Sabotage Your Drainage

It is crucial to recognize that a new roof installation can sometimes create new drainage problems if the contractor is not careful. Our teams, with their 24+ years serving Texas and Oklahoma, have seen numerous expensive mistakes made by less experienced roofers.

• Blocking Secondary Drains: One of the most common and dangerous errors is roofing directly over low-profile overflow scuppers in the parapet wall, effectively eliminating the secondary drainage system.
• Incorrect Drain Height: When installing a new roof system over an old one (a "recover"), the new membrane raises the roof surface. If the contractor does not also raise the overflow drain height, the two-inch separation between primary and secondary systems is lost, defeating the purpose of the failsafe.
• Tapered Insulation Errors: When using tapered insulation to create proper slope, incorrect layout can inadvertently create "dead zones" where water cannot reach a drain.

These mistakes not only put your building at risk but can also void your manufacturer's warranty. Working with a certified, experienced contractor who understands the engineering behind drainage is critical. A robust No Dollar Limit (NDL) warranty is only valuable if the system is installed correctly to begin with.

Your Roof's First Line of Defense

Your commercial roof's drainage system works silently in the background, but its importance cannot be overstated. It is not an accessory. It is the core component responsible for protecting your structure, your inventory, and your operational continuity from the predictable threat of water. Understanding its design, the significant weight of ponding water, and the stark financial difference between maintenance and disaster is fundamental to effective facility management. By shifting from a reactive repair mindset to a proactive comprehensive roof maintenance program, you transform a major liability into a well-managed asset. If you have any doubts about the adequacy of your current system, please contact TriVAN Roofing for an assessment.
