Wind Uplift & Roof Attachment: Why How Your Roof Is Fastened Matters More Than What It's Made Of in Texas

Why the Way Your Roof Is Attached Matters More Than What It's Made Of

As a facility manager or building owner in Texas or Oklahoma, you face a recurring cycle of decisions when it comes to your property’s roof. When evaluating roofing bids, the conversation almost always centers on two things: the type of membrane (TPO vs. PVC vs. EPDM) and the length of the warranty. These are important, but at TriVAN Roofing, with over two decades of experience in the heart of the hail corridor, we know the most critical question is often the one that goes unasked: How will the roof be attached?

The choice between a mechanically fastened and a fully adhered system is not a minor detail or a simple cost variable. It is a fundamental engineering decision that has a greater impact on your roof’s ability to survive a severe wind event than the brand of material on its surface. Focusing on membrane thickness while ignoring attachment specifications is like building a fortress wall but failing to cement the stones together. In the face of sustained high winds and violent convective storms common to our region, a poorly attached roof system is a prime candidate for a catastrophic roof failure.

The Physics of Failure: Understanding Wind Uplift

Most people imagine wind damage comes from the wind pushing against a building. While that happens, the more destructive force for a low-slope commercial roof is suction, a phenomenon known as wind uplift. When a steady stream of wind encounters a building, it must travel up and over the roof. This is similar to how an airplane wing generates lift.

As the air accelerates over the roof surface, its pressure drops. According to Bernoulli's principle, where velocity is high, pressure is low. This creates a low-pressure zone on top of the roof. Simultaneously, the pressure inside your building remains relatively high. The result is a net upward force, or suction, pulling the roofing membrane away from the deck. In a 90-mph wind, that force can be as high as 20-30 pounds per square foot, equivalent to thousands of pounds of force trying to tear your roof off.

Not All Roof Areas Are Created Equal: Understanding ASCE 7-22

This upward force is not applied evenly. The American Society of Civil Engineers (ASCE) provides the technical standard for calculating wind loads in its document, ASCE 7-22, which has been adopted by most building codes in Texas and Oklahoma. This standard acknowledges that airflow separation and turbulence create far higher uplift pressures at the edges and corners of a roof than in its center.

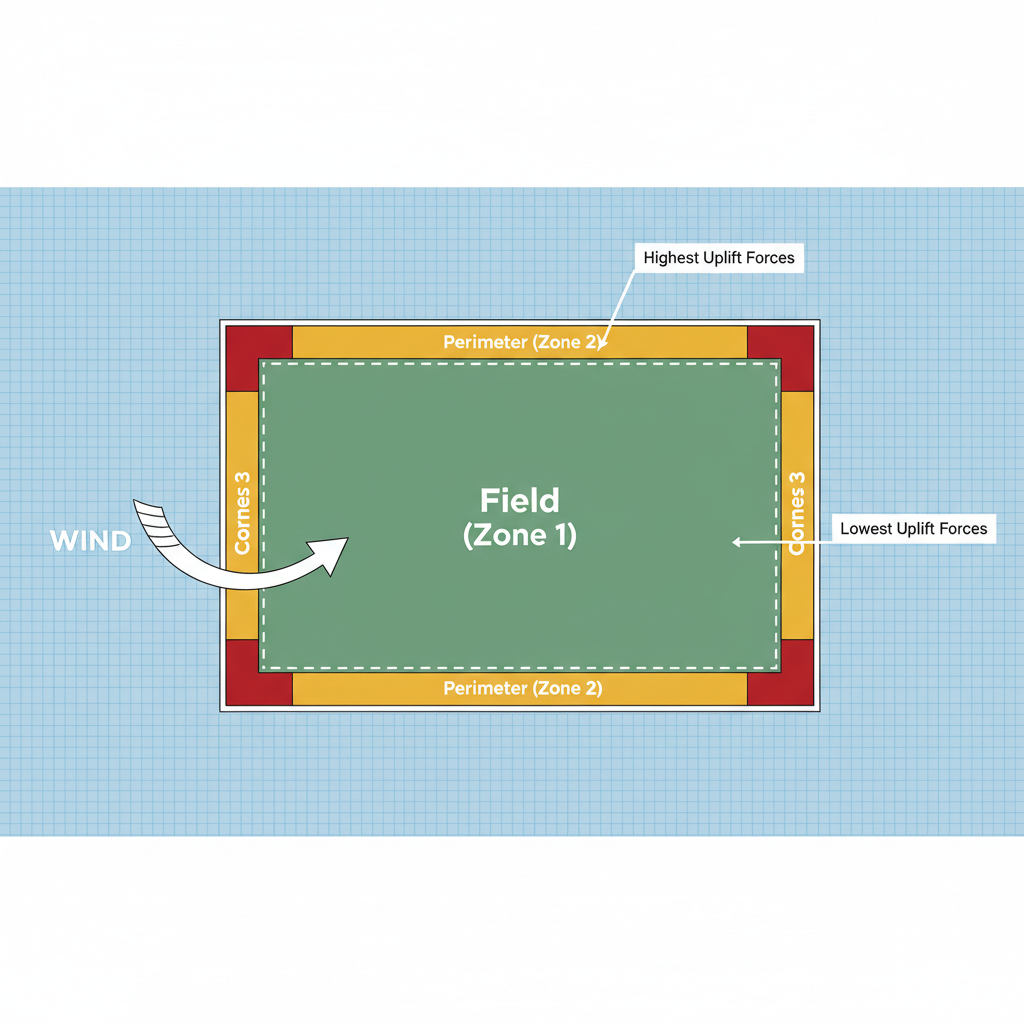

ASCE 7-22 divides a roof into three distinct zones, each requiring a different level of wind uplift resistance based on the calculated pressures they will experience. Ignoring these zones is a recipe for failure.

• Zone 1 (The Field): This is the large, central area of the roof, which experiences the lowest uplift forces.
• Zone 2 (The Perimeter): This is a defined band around the entire edge of the roof. Wind forces here can be 1.5 to 2.5 times higher than in the field.
• Zone 3 (The Corners): These are the four corners of the roof, where turbulence is most extreme. Uplift forces in this zone can be 2.5 to over 4 times higher than in the field of the roof.

What does this mean in practice? A contractor who installs a roof with a single, uniform attachment pattern across the entire surface is creating a dangerously under-engineered system. The attachment might meet the minimum requirement for the field, but it will be woefully inadequate at the perimeters and corners where failures almost always begin.

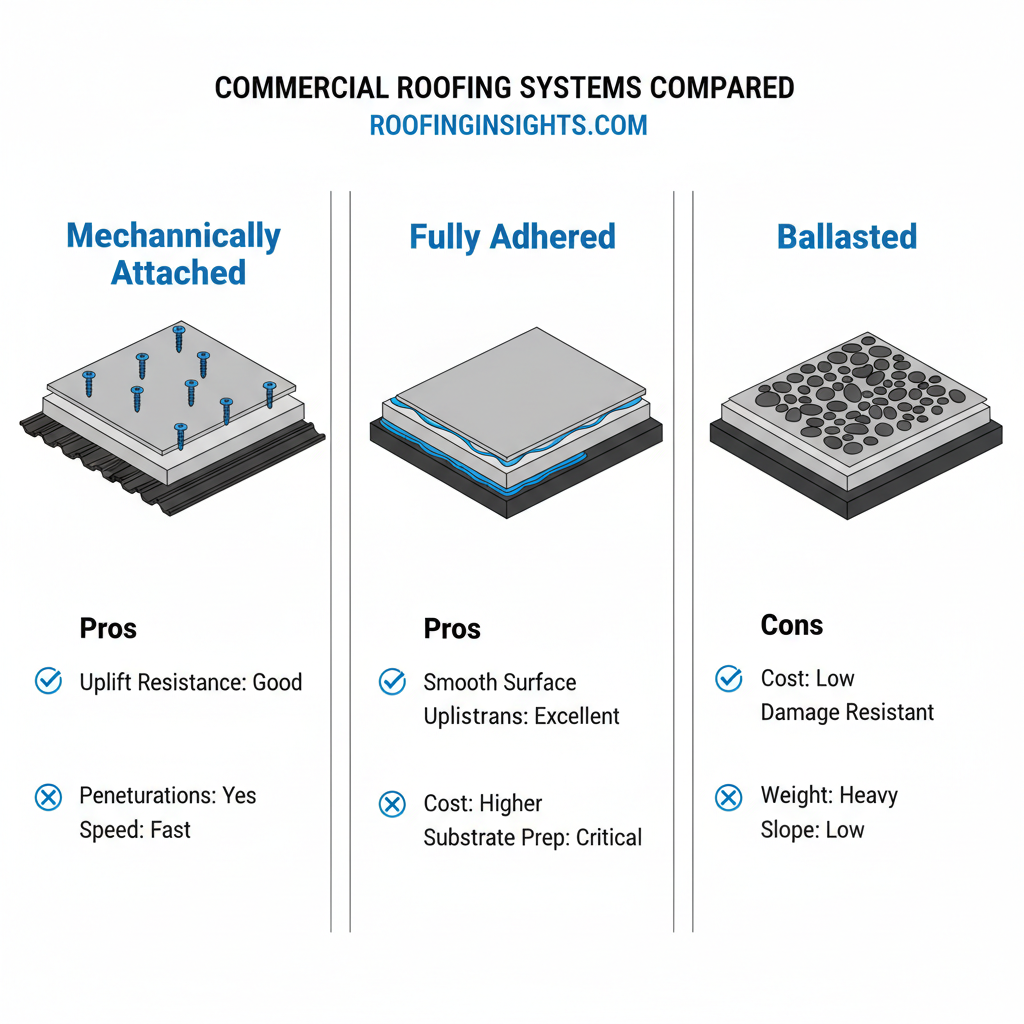

A Tale of Three Attachments: Comparing Your Options

The choice of attachment is a primary driver of a roof system's cost, installation speed, and, most importantly, its performance against wind uplift. Let's break down the three main methods.

Mechanically Attached Systems

This is one of the most common methods for single-ply commercial roofing systems due to its lower cost and fast installation. The process involves laying down insulation boards and then rolling the membrane over them. Long screws and plates are then driven through the membrane and insulation, fastening the system directly to the structural deck below. These fasteners are installed in rows at specific intervals.

• Pros: Lower initial material and labor cost. Can be installed in a wider range of temperatures.
• Cons:
  • Vulnerability to Billowing: The membrane is only secured at the fastener points. In high winds, the loose material between fastener rows can inflate like a parachute, a phenomenon called billowing. This puts immense stress on the fasteners and seams, leading to fastener pull-out or seam failure.
  • Stress Concentration: The entire wind load on a section of membrane is transferred to just a few fastener points, creating immense stress on those small areas.
  • Thermal Bridging: Each of the thousands of metal fasteners acts as a small bridge for heat to escape or enter the building, reducing the overall R-value of the insulation.
  • Fastener Back-Out: A significant but often overlooked issue we will discuss in detail later.

Fully Adhered Systems

In a fully adhered system, the roofing membrane is bonded directly to the insulation substrate using a specialized, high-strength adhesive. The insulation itself is first secured to the roof deck with adhesives or fasteners. The result is a single, monolithic unit where the entire roof surface works together to resist wind uplift.

• Pros:
  • Superior Wind Uplift Resistance: By distributing wind forces across the entire roof surface, adhered systems eliminate billowing and can withstand much higher uplift pressures than mechanically attached systems. There are no single points of failure.
  • Enhanced Aesthetics: The roof surface is smooth and clean, with no visible fastener rows.
  • Improved Energy Efficiency: The absence of thousands of thermal bridges (metal fasteners) allows the insulation to perform at its full rated R-value.
• Cons:
  • Higher Initial Cost: Adhesives are more expensive than screws, and the application can be more labor-intensive, leading to a higher upfront cost. However, this is often offset by life-cycle savings and reduced risk.
  • Substrate Dependent: The adhesive requires a clean, compatible, and smooth substrate to bond to properly.

Ballasted Systems

Ballasted systems are an older method where the membrane is laid loosely over the insulation and held in place by a heavy layer of aggregate (like river rock) or large concrete pavers. The sheer weight of the ballast—typically 10-25 pounds per square foot—is what keeps the roof in place.

• Pros: Low installation cost and provides some fire and impact resistance.
• Cons:
  • Extreme Weight: The massive dead load requires a building structure specifically engineered to support it. Many modern, lightweight structures cannot handle a ballasted system.
  • Wind Scour: In high winds, loose stones can be blown off the roof, becoming dangerous projectiles and exposing the membrane underneath.
  -
  • Difficult Leak Detection: Finding the source of a leak beneath a thick layer of rock is a difficult and labor-intensive process.

For most applications in Texas and Oklahoma, the primary choice is between mechanically attached and fully adhered. Given the high-wind reality of our region, the superior performance of a fully adhered system often provides a far greater return on investment through risk mitigation.

The Deck's Critical Role: Your Roof Is Only as Strong as Its Foundation

The attachment method is only half of the equation. The other half is the structural deck to which the system is being fastened. Fasteners perform differently in different materials.

• Steel Deck: This is the most common deck type in commercial construction. The holding power of a fastener is dependent on the gauge (thickness) of the steel. A fastener specified for a 22-gauge deck will not have the same pull-out strength if installed in a lighter 24-gauge deck.
• Concrete Deck: Concrete provides excellent pull-out resistance, but its condition is critical. Old, spalling, or low-strength concrete can compromise the attachment.
• Wood Deck: Plywood or wood plank decks can vary widely in condition. Rot, delamination, or splintering will dramatically reduce fastener holding power.

A responsible contractor will perform pull-out tests on the existing deck before finalizing the attachment specification. These tests involve installing several sample fasteners and using a special tool to measure the exact force required to pull them out. This data, not a generic assumption, should be used to determine the correct fastener type and spacing pattern to meet the calculated ASCE 7-22 wind loads for your specific building.

The FM Global Connection: The Gold Standard for Risk-Averse Owners

For building owners concerned with maximum resilience and insurability, understanding FM Global standards is essential. FM Global is an industrial property insurer that conducts its own extensive scientific research and testing on building materials, including roofing assemblies.

Their ratings are considered among the strictest in the industry. FM Approvals tests entire roof assemblies—deck, fasteners, insulation, and membrane—to determine the exact wind uplift pressure they can withstand before failing. These approved assemblies are listed in their online database, RoofNav.

If your building is insured by FM Global, you will likely be required to install an FM-approved assembly that meets a specific pressure rating (e.g., 1-90, which means it can withstand 90 pounds per square foot of negative pressure). Using a top-tier contractor who is a Duro-Last Elite Contractor and GAF Master Elite roofer ensures familiarity with these stringent requirements. Installing a non-approved system can have serious consequences for your insurance coverage and claim outcomes after a storm. It can also impact the roof system’s warranty.

The Hidden Danger: Fastener Back-Out and Thermal Cycling

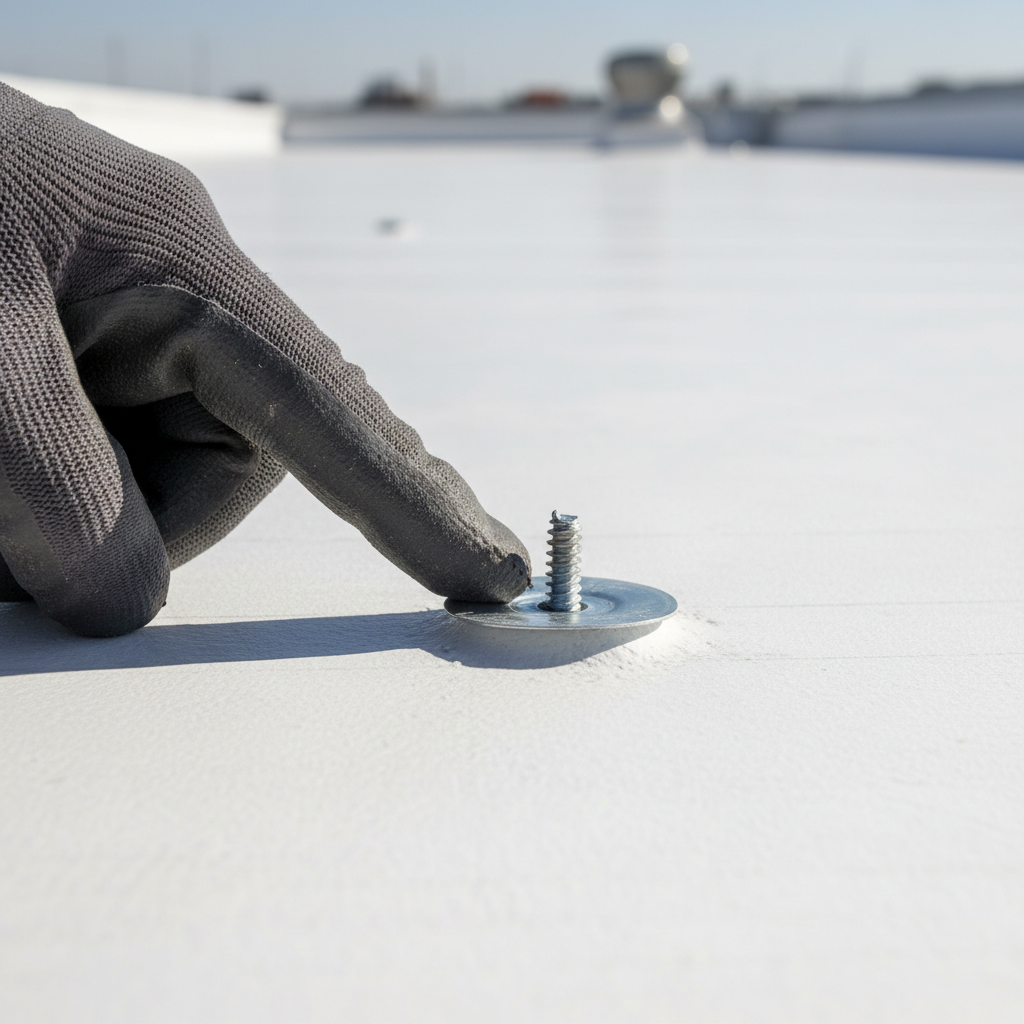

One of the most insidious problems with mechanically attached systems is fastener back-out. Your roof is not a static object. It expands and contracts every day with temperature changes, a process called thermal cycling. The difference between a hot summer day and a cool night can cause significant movement in the roofing components.

Over years of this constant expansion and contraction, the tiny movements can slowly "walk" fasteners up and out of the roof deck. The fastener's grip loosens, and its pull-out resistance is dramatically reduced. This gradual loosening is almost impossible to detect from the ground and often causes no leaks, giving a false sense of security. The attachment is compromised, but the problem remains invisible until a significant wind event provides a sudden, catastrophic test.

This is not a theoretical problem. It is a common finding during detailed roof inspections. A fully adhered system is immune to this issue. For a mechanically attached roof, the only defense is vigilance through proactive roof maintenance inspections where a technician physically checks for and tightens or replaces backed-out fasteners.

The Real-World Test: Attachment is the Deciding Factor

After any major wind event in the Dallas-Fort Worth, San Antonio, Tulsa, or Oklahoma City areas, the evidence is clear. The roofs that peel back or are completely removed are overwhelmingly systems where the attachment failed. Often, it begins at a corner or perimeter edge that was not properly enhanced. The wind gets under the membrane, and the billowing effect tears the rest of the roof apart like a zipper.

Conversely, properly installed fully adhered roofs, or mechanically attached systems with correctly specified corner/perimeter enhancements, remain intact. The membrane may be damaged by flying debris, but the system as a whole does not fail. This is the difference between a simple repair and a multi-million dollar replacement and the associated business interruption costs.

Your roof's attachment specification is not the place to "value engineer" or cut corners. A slightly higher upfront investment in a fully adhered system or a robust, ASCE 7-22 compliant mechanically attached system is a small price to pay to ensure your facility survives the inevitable Texas or Oklahoma storm. Don’t wait for the next severe weather alert to wonder if your roof is truly secure. If you are unsure about your roof's current condition or its ability to withstand our region's weather, request a detailed assessment from a team that understands wind engineering is just as important as roofing.
