Roofing Cold Storage & Refrigerated Warehouses: Why Standard Commercial Specifications Fail

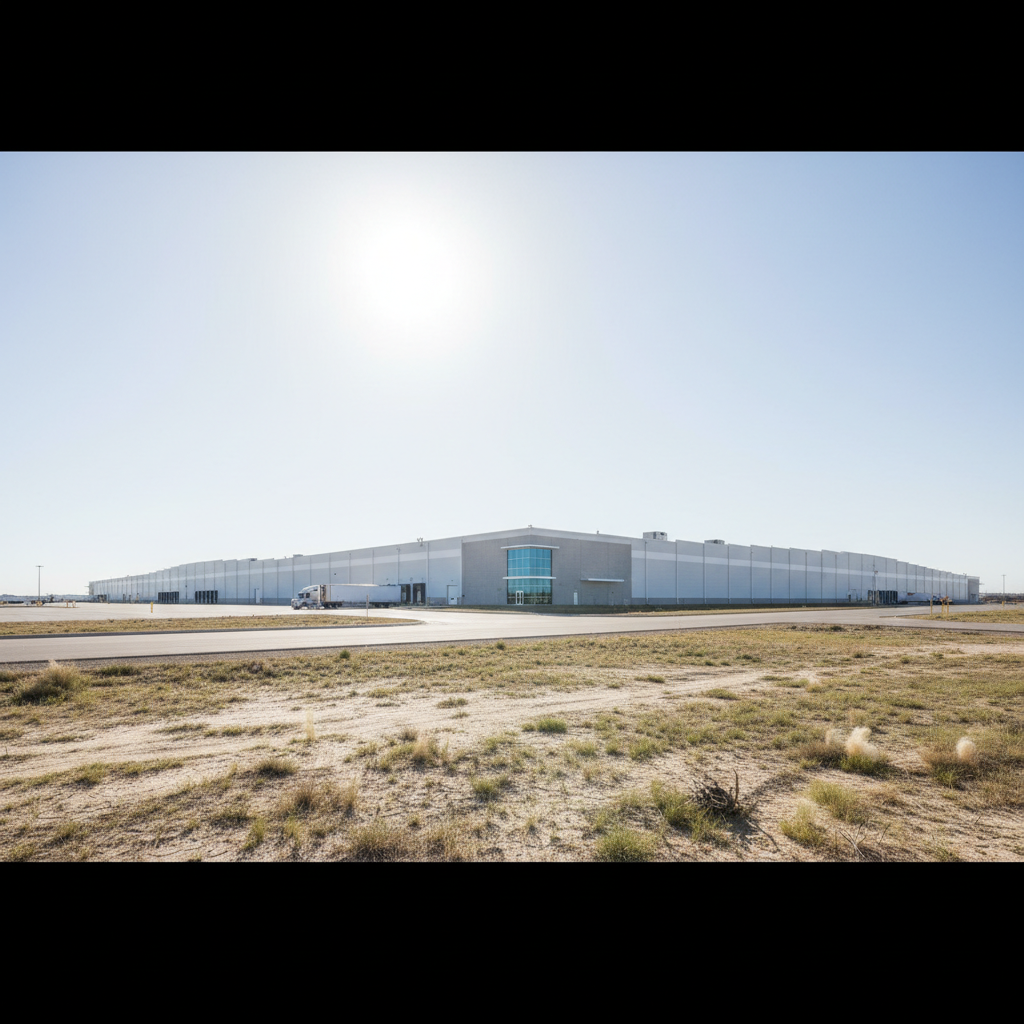

A refrigerated warehouse in the middle of a Texas summer is in a state of constant conflict. Outside, the air is thick with humidity and temperatures soar past 100°F. Inside, the environment is a precisely controlled 35°F, or perhaps even a frigid -10°F. The only thing separating these two extremes is the roof assembly. For facility managers and building owners, understanding that this is no ordinary commercial roofing project is the first step toward avoiding a catastrophic and expensive failure. Applying standard specifications to a cold storage facility is not a cost-saving measure. It is a guarantee of future problems, including rampant condensation, failing insulation, and structural decay.

In the significant food distribution, agricultural storage, and cold chain logistics hubs of Texas and Oklahoma, we repeatedly see the consequences of this misunderstanding. Roofs that should last 20 years fail in less than ten. Energy bills skyrocket as refrigeration systems struggle to compensate for wet, useless insulation. And worst of all, hidden corrosion silently eats away at the building's structural deck. This article breaks down the essential science that makes cold storage roofing different and explains why a specialized approach is not just recommended, it is required.

The Unseen Enemy: Vapor Pressure in Refrigerated Buildings

To understand why cold storage roofs fail, you need to think about more than just rain. The real threat is invisible: water vapor. A fundamental law of physics states that moisture and heat move from areas of higher concentration to areas of lower concentration. On a hot, humid day in Dallas or Oklahoma City, the air outside your warehouse is full of heat and moisture. The air inside your freezer is cold and very dry. This creates a powerful, relentless pressure differential pushing that exterior heat and moisture inward, directly through your roof assembly.

In a standard office or retail building, the temperature and humidity difference between inside and outside is relatively small. The building is designed to manage this with basic insulation and airflow. But in a refrigerated building, the difference is extreme and constant, 24 hours a day, 365 days a year. The result is a one-way street for moisture. This constant force is called vapor drive or vapor pressure differential, and it is the single most important physical force that a cold storage roof must be designed to resist.

When this warm, moist air successfully infiltrates the roof assembly, it travels through the insulation until it hits a cold surface where the temperature drops to the dew point. At that an exact point, the invisible water vapor condenses into very real liquid water. This condensation happens deep inside the roof, completely hidden from view. The water saturates the insulation, collects on structural components, and begins a slow, destructive process that often goes unnoticed until the damage is severe.

The Critical Role of a Warm-Side Vapor Retarder

Since you cannot stop the laws of physics, the only solution is to build a barrier. In cold storage roofing, this barrier is the vapor retarder. This is an entirely different component from the waterproof roof membrane on the top. A vapor retarder is a material specifically designed to stop the passage of water vapor, and its placement within the roof assembly is non-negotiable: it must be on the warm side of the insulation.

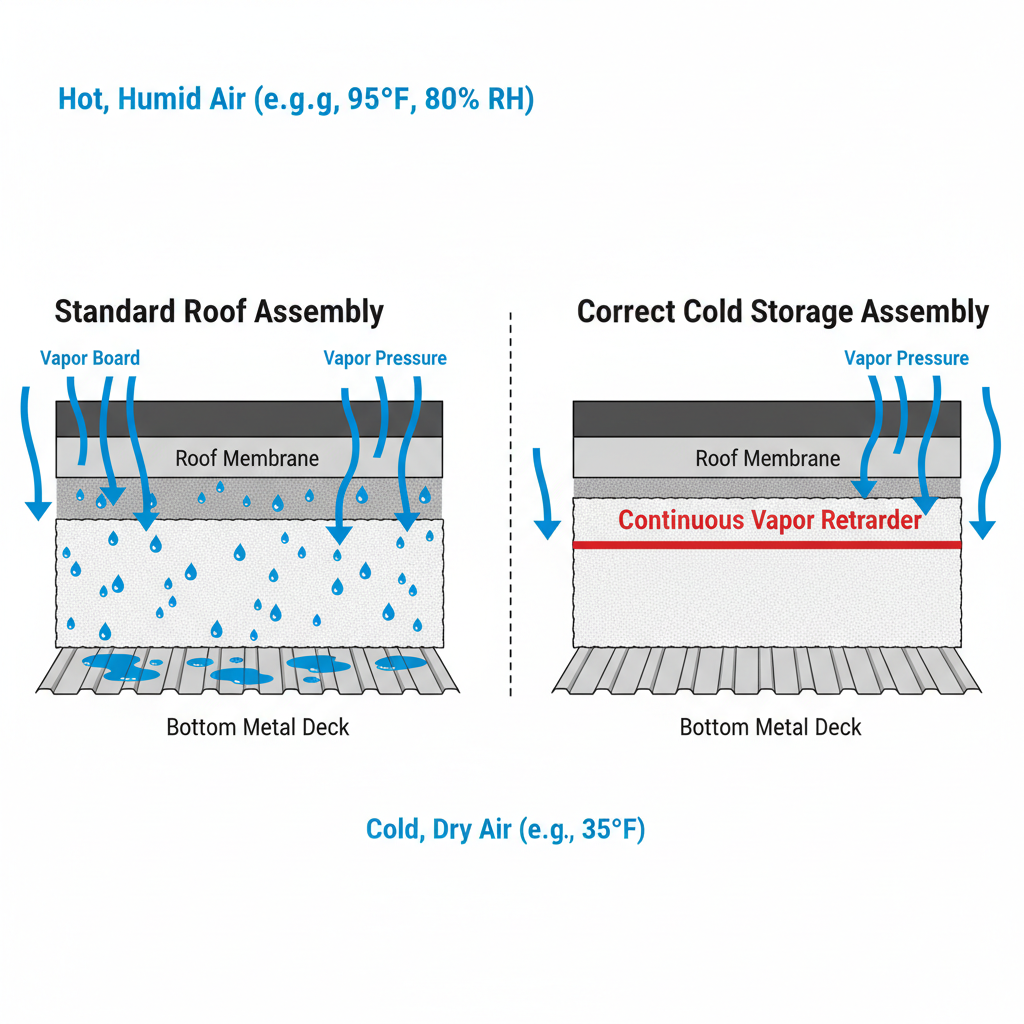

Think about it this way: if you place the vapor barrier on the cold side (just under the roof membrane), vapor will still travel through the insulation and get trapped, condensing against the barrier you just installed. By placing it on the warm side, typically directly on top of the structural deck before any insulation is laid down, you block moisture from ever entering the assembly in the first place.

This is arguably the most critical component of the entire system. A standard roofing specification might call for a basic slip sheet or no vapor retarder at all. For a cold storage facility, this is an immediate red flag. The specification for the vapor retarder must be precise:

• Low Permeability: The material must have a very low "perm" rating, indicating its resistance to vapor passage. Materials like polyethylene sheets or self-adhering modified bitumen membranes specifically designed for this purpose are common.
• Continuity: The vapor retarder must be continuous. Every seam must be perfectly sealed, and it must be carefully flashed and sealed around every single roof penetration, curb, and wall transition. A small, unsealed gap around a pipe can allow gallons of water vapor into the assembly over time.

The quality of the vapor retarder and the expertise of its installation are more important than almost any other element. An excellent roof membrane on top of a failed vapor retarder will still lead to a completely saturated and failed roof system.

Beyond Code: Why Insulation R-Value is an Economic Decision

Energy codes dictate minimum insulation requirements for commercial buildings. For a typical warehouse in Texas, this might be an R-value of 25 to 30. For a refrigerated warehouse, relying on the code minimum is a massive financial mistake. The amount of insulation in a cold storage roof is not just about meeting code; it is an economic calculation that balances the upfront cost of insulation against the long-term cost of energy.

With a 70-degree or even 100-degree temperature differential across the roof, every missing bit of R-value translates directly into higher energy consumption as your refrigeration equipment runs constantly to remove the incoming heat. The math is simple: more insulation means less heat gain and lower electricity bills for the entire life of the building.

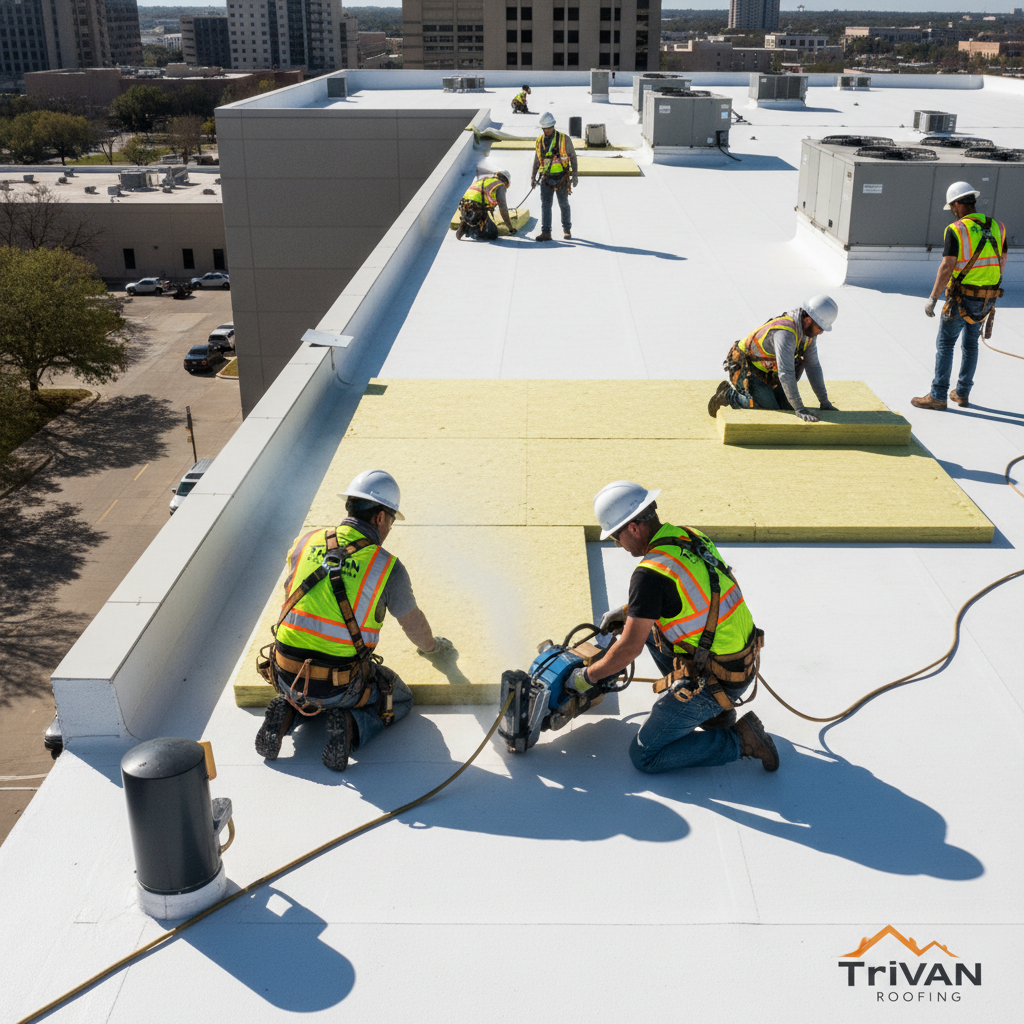

For this reason, cold storage facilities typically require insulation values of R-40, R-50, or even R-60. This is achieved by installing multiple layers of rigid insulation, like polyisocyanurate (polyiso), with staggered joints to prevent thermal bridging. Paying for an extra four or five inches of insulation during construction can have a payback period of just a few years, after which it generates pure operational savings for decades.

Choosing a contractor who understands this economic reality is crucial. A roofer who simply proposes a code-minimum assembly is not thinking about your 20-year operational budget. An expert in cold storage will present options and explain the long-term return on investment for a higher-R-value system.

The High Cost of Failure: Structural Deck Corrosion

So, what happens when vapor gets into the assembly and condenses? The insulation gets wet, its R-value plummets, and your energy costs rise. That is the immediate problem. The long-term, catastrophic problem is what happens to the building's structure.

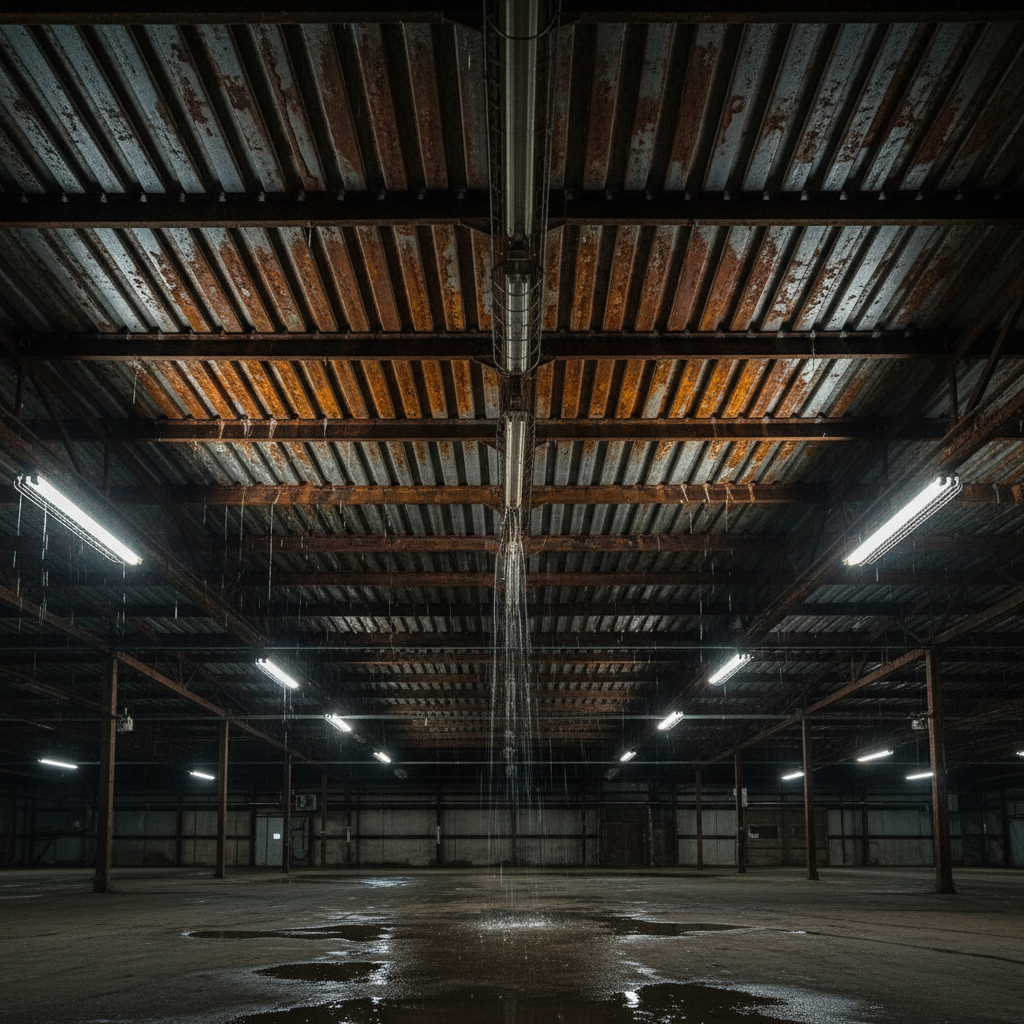

Most commercial warehouses are built with a steel structural deck. This corrugated metal deck is the last cold surface the infiltrating moisture hits before entering the building. As condensation forms here day after day, year after year, the steel begins to rust. Because it is happening in a high-humidity, low-airflow environment, the corrosion is aggressive.

This is not surface rust that can be brushed away. It is aggressive, progressive corrosion that reduces the thickness and load-bearing capacity of the structural steel. In facilities we have inspected, we have seen deck sections corroded to the point of perforation within 10 to 15 years of a faulty roof installation.

By the time you see water dripping inside the facility, the damage is already extensive and advanced. Repairing a corroded structural deck is an incredibly disruptive and expensive process. It often involves removing the entire roof section, cutting out and replacing damaged steel, and then rebuilding the roof. The cost of this remediation can easily be five to ten times the cost of the original roofing project. Performing comprehensive roof inspections that include thermal imaging can help detect this trapped moisture before it leads to structural failure, but prevention is a far superior strategy.

Building the Right Assembly for a Cold Environment

A successful cold storage roof is a carefully engineered system, not just a collection of materials. While the specific membrane or attachment method can vary, the core principles remain the same. Success depends on every single component working together, from the deck up to the membrane. Compromise on any step, and you compromise the entire system.

Here is a look at a properly designed assembly:

1. Structural Deck: The foundation of the system. It must be clean, dry, and ready to receive the vapor retarder.
2. Continuous Vapor Retarder: Installed directly onto the deck. All laps are sealed, and all penetrations are meticulously detailed to create an airtight and vapor-tight barrier. This is the "do not pass" line for moisture.
3. Multiple Layers of High-R Insulation: Thick layers of high-R-value polyiso insulation (often totaling 8-10 inches or more) are installed over the vapor retarder. The joints between the boards are staggered to minimize heat loss.
4. Cover Board (Optional but Recommended): A high-density cover board may be installed over the top layer of insulation to provide a rigid substrate and protect it from foot traffic and hail.
5. Waterproof Membrane: A high-quality, heat-welded membrane like PVC or TPO is the final layer. Its seams create a monolithic, waterproof surface. While a white, reflective membrane is best for energy efficiency, its primary job is to keep liquid water out. The vapor retarder underneath is what keeps water vapor out.

The quality of the contractor is paramount. You need a team that understands the unique demands of this building type. This means choosing a partner who is, for example, an elite contractor for top-tier systems like Duro-Last, as this certification demonstrates a commitment to manufacturer-approved best practices. Such a contractor will not cut corners on sealing the vapor retarder or skimp on flashing details, because they know that is where systems fail.

A Partner Who Understands the Stakes

For more than two decades, TriVAN Roofing has been serving the unique needs of commercial and industrial building owners across Texas and Oklahoma. Our over 24 years of experience have shown us firsthand what happens when standard roofing practices are misapplied to specialized facilities. We approach every cold storage project with a building science perspective, focusing on the unseen forces of vapor pressure and thermal dynamics that determine long-term success.

A low bid that ignores the need for a robust vapor retarder or sufficient insulation is not a low bid at all; it is a down payment on a much larger future expense. A properly specified and installed cold storage roof should come with a comprehensive, No Dollar Limit (NDL) warranty that covers materials and workmanship, giving you confidence in the long-term performance of your asset. Protecting the system through proper installation and ongoing roof maintenance is the only way to ensure the integrity of your building and the efficiency of your operations.

Your refrigerated warehouse is one of your most valuable and complex assets. Its roof demands more than a standard solution. If you are planning a new facility or concerned about the performance of your existing roof, contact TriVAN Roofing for a consultation based on proven science and decades of regional experience.
